8-Bit電磁爐專用單片機HT45R11B?
1.1?資源介紹
???工作電壓:?
?????? =4M?Hz:2.2V～5.5V
?????? =8M?Hz:3.3V～5.5V
????22?個雙向I/O?口?(最多.)?
???????一個和I/O共用的外部中斷輸入腳
???????內置輸入去抖電路
?????三個8?bit?可編程定時/事件計數器
??????? 4096?x?15?ROM
??????? 144?x?8?RAM
????HALT?和?wake-up?可降低芯片功耗
???????指令周期最快為?0.5μs?(?8MHz??VDD?=5V)
??????? 8級子程序嵌套
??????? 9通道12-bit?精度?A/D?轉換
??????? 9-bit?PPG
?????? 可編程設置高電平或低電平有效
?????? 3?個比較器,?1?個運算放大器?(可軟件調零)
???????低壓復位/低壓檢測功能
???????多種封裝可選24DIP,?20DIP,?18DIP,16DIP?,?16NSOP

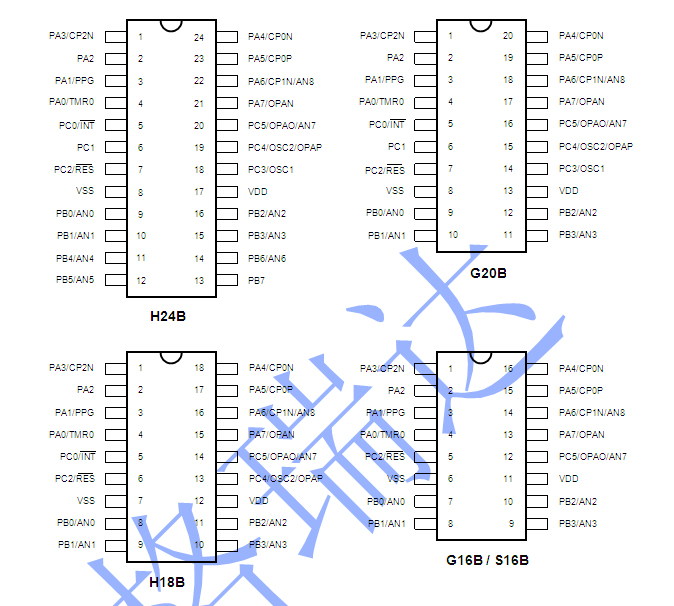

1.2?管腳圖
1.3?訂購信息
|
下單規格
|
功能簡述
|
芯片型號
|
封裝
|
|
S16B
|
8-Bit電磁爐專用單片機
|
HT45R11B
|
NSOP16
|
|
G16B
|
8-Bit電磁爐專用單片機
|
HT45R11B
|
DIP16
|
|
H18B
|
8-Bit電磁爐專用單片機
|
HT45R11B
|
DIP18
|
|
G20B
|
8-Bit電磁爐專用單片機
|
HT45R11B
|
DIP20
|
|
H24B
|
8-Bit電磁爐專用單片機
|
HT45R11B
|
DIP24
|
